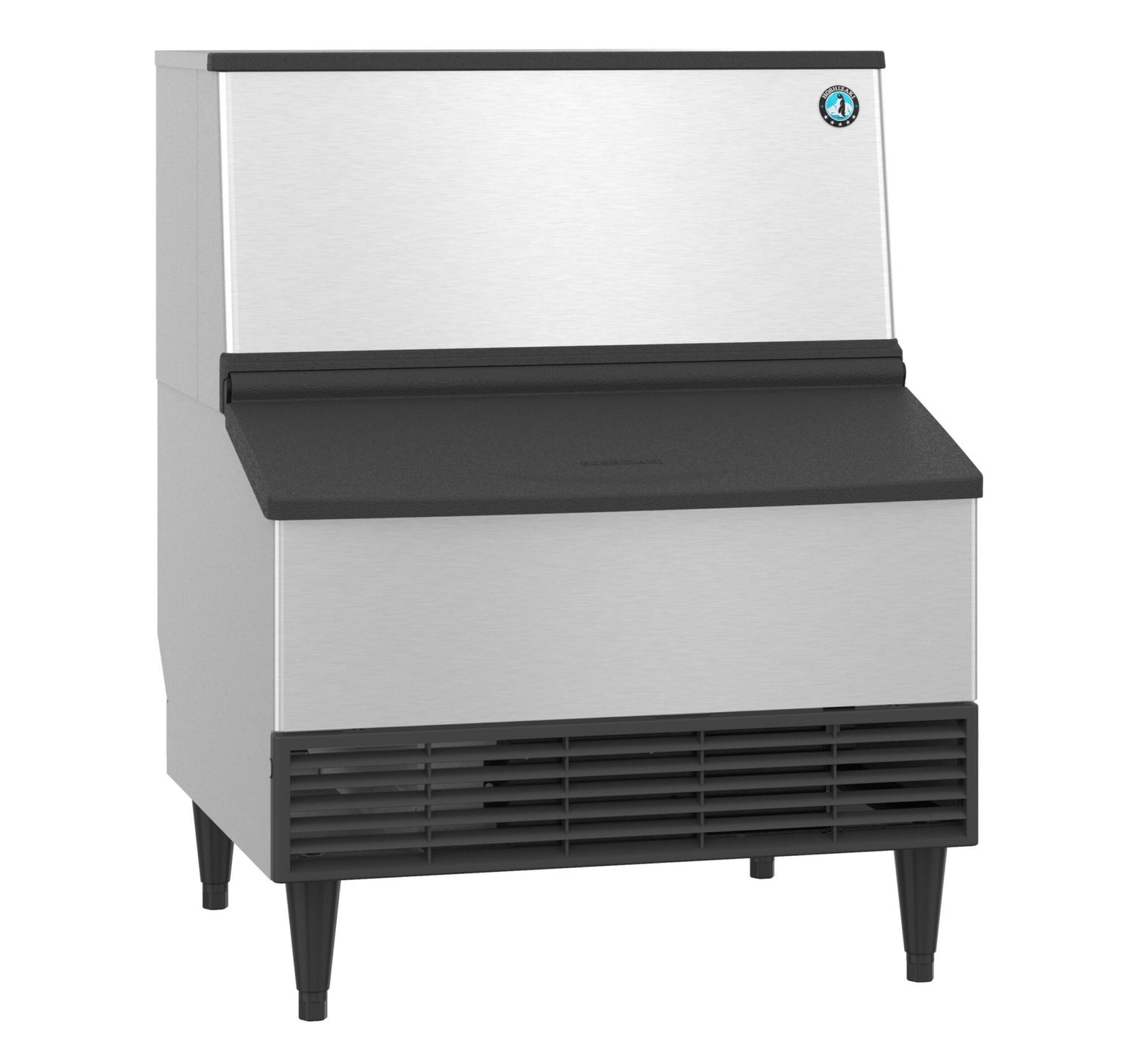

Hoshizaki KM-301BAJ Icemaker

Technical Specifications

• Model: KM-301BAJ

• Dimensions: 30.43" W × 28" D × 39" H

• Ice Production: Up to 290 lbs per 24 hours at 70°F air / 50°F water; 212 lbs AHRI-certified at 90°F air / 70°F water

• Storage Capacity: 100 lbs (3.3 ft³) built-in storage bin

• Ice Type: Crescent cubes (1⅛" × 1½" × ½")

• Cooling System: Air-cooled, self-contained condenser

• Refrigerant: R-404A (13.4 oz / 380 g)

• Electrical Requirements: 115V/60Hz/1Ph, 8.4 amps, 6.5 ft cord with NEMA 5-15P plug

• Heat Rejection: 4,200 BTU/hr

• Water Temperature Range: 45–90°F

• Water Pressure: 10–113 psig

• Voltage Range: 104–127V

• Energy Consumption: 7.1 kWh per 100 lbs @ 90/70

• Warranty: 3-year parts & labor; 5-year parts & labor on evaporator; 5-year parts on compressor and air-cooled condenser coil

• Certifications: UL, NSF, cETLus, ADA Compliant

Product Overview

The Hoshizaki KM-301BAJ is a high-performance undercounter ice machine designed to meet the demands of small to medium-sized establishments such as bars, hotel lobbies, and office break rooms. With a compact footprint of 30.43" W × 28" D × 39" H, it efficiently produces up to 290 lbs of crescent-shaped ice per day, ensuring a consistent supply for your beverage service needs.

Equipped with a 100 lbs built-in storage bin, the KM-301BAJ allows for easy access to ice through its ADA-compliant front-opening bin. The air-cooled, self-contained condenser simplifies installation and maintenance, making it an ideal choice for establishments with limited space.

The unit features Hoshizaki's CycleSaver™ design, which optimizes energy and water usage, resulting in lower operational costs and reduced environmental impact. Additionally, the EverCheck™ alert system provides real-time diagnostics and maintenance alerts, ensuring the unit operates at peak performance.

Constructed with a durable stainless-steel exterior, the KM-301BAJ is built to withstand the rigors of a commercial environment while maintaining a sleek and professional appearance.
