Key Specifications:

• • Model: TTUH‑CO‑70B (Cat. No. TTUH‑COR 70B)

  • Mounting Type: Bottom‑mounted flanged immersion heater

  • Flange Material: Brass

  • Sheath Element: Copper

  • Power Range: Up to 12 kW

  • Voltage Options: 120 V, 208 V, 240 V, 480 V (1‑phase & 3‑phase)

  • Watt Density: High watt density for fast heat-up

  • Safety Feature: Built-in low liquid thermal cutout

  • Certifications: UL Listed, CSA

  • Typical Applications: Steam tables, kettles, rinse tanks, food prep, and industrial heating

  • Product Dimensions: 16.5" x 6" x 5"

  • Weight: 5.0 lb

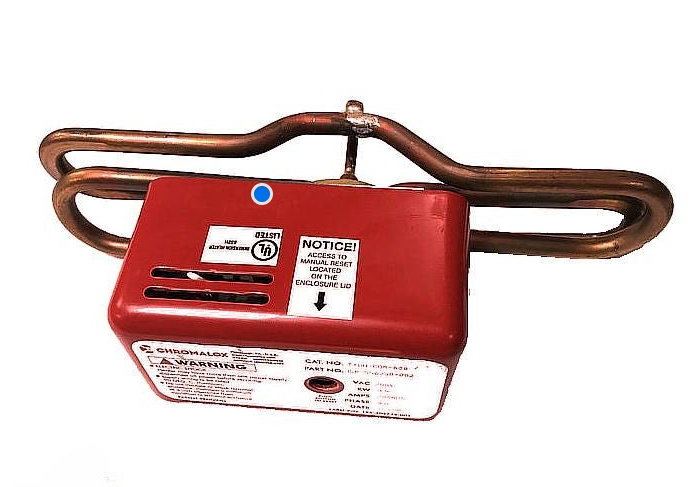

• The Chromalox TTUH‑CO‑70B is a high-performance flanged immersion heater engineered for efficient liquid heating in foodservice, sanitation, and light industrial applications. Its copper sheath elements and brass flange deliver excellent thermal conductivity, providing fast and consistent heat with minimal energy loss.

  With power ratings up to 12 kW and support for multiple voltages, this unit meets the demands of equipment like steam tables, kettles, rinse tanks, and preheat systems. The high watt density ensures rapid heat-up, while the integrated low liquid level cutout adds an important layer of protection against dry-fire conditions.

  UL and CSA certified, the TTUH‑CO‑70B is built for long-term reliability. Its flange-mounted design allows for secure, easy installation in pressurized or open tanks, making it ideal for new system builds or as a replacement heater.
